Cabinplant Baudelot Chiller

Cooling/Freezing

Baudelot Chiller

The Cabinplant water chiller is of the Baudelot (falling film) type. Water flows uniformly from a common overhead distribution trough over both sides of the vertical stainless steel plates. The water flows in a thin film over the computer-designed outer surface of the plates to obtain the highest possible outside film coefficient.

Download our brochure below and learn more about the Baudelot chiller

"*" indicates required fields

Download file

Please fill out the required fields below.

First name*

Last name*

Country*

Company name*

Phone*

Email*

Hidden

pdf

CAPTCHA

High efficiency

Automatic level control

Built-in filter system

Description

Inside the plates, refrigerant boils, following a computer-designed path for high inside film coefficient and low pressure drop. The stainless steel collection tank is equipped with a float valve for make-up. The make-up water is led to the overhead distribution trough. In addition, the tank is equipped with a number of pumps for pumping chilled water to the consumption location. The unit is designed to be fully enclosed during operation; opening is required only for cleaning purposes.

Capacity depends designed to be fully enclosed during operation

The unit consists of:

Rotating filter (optional) or parabolic screen as on picture
Distribution
Computer-designed cooling plates
Collection/accumulation tank
Recirculation pumps
Fresh water connection with automatic level control

Features & benefits

High efficiency
Chills liquid to almost refrigerant temperature
Automatic level control
Computer-designed cooling plates
Built-in filter system
Open construction for easy cleaning

Dimensions

Length	Height incl. filter	Width
3050 mm	3470 mm	2830 mm

Dimensions of the above configuration.

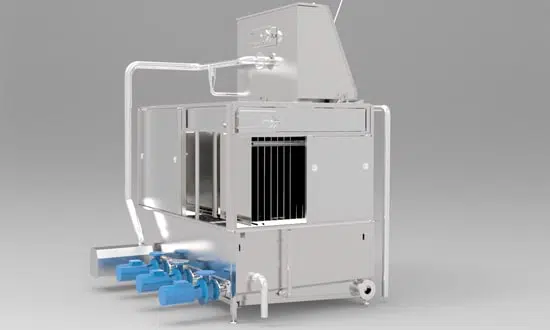

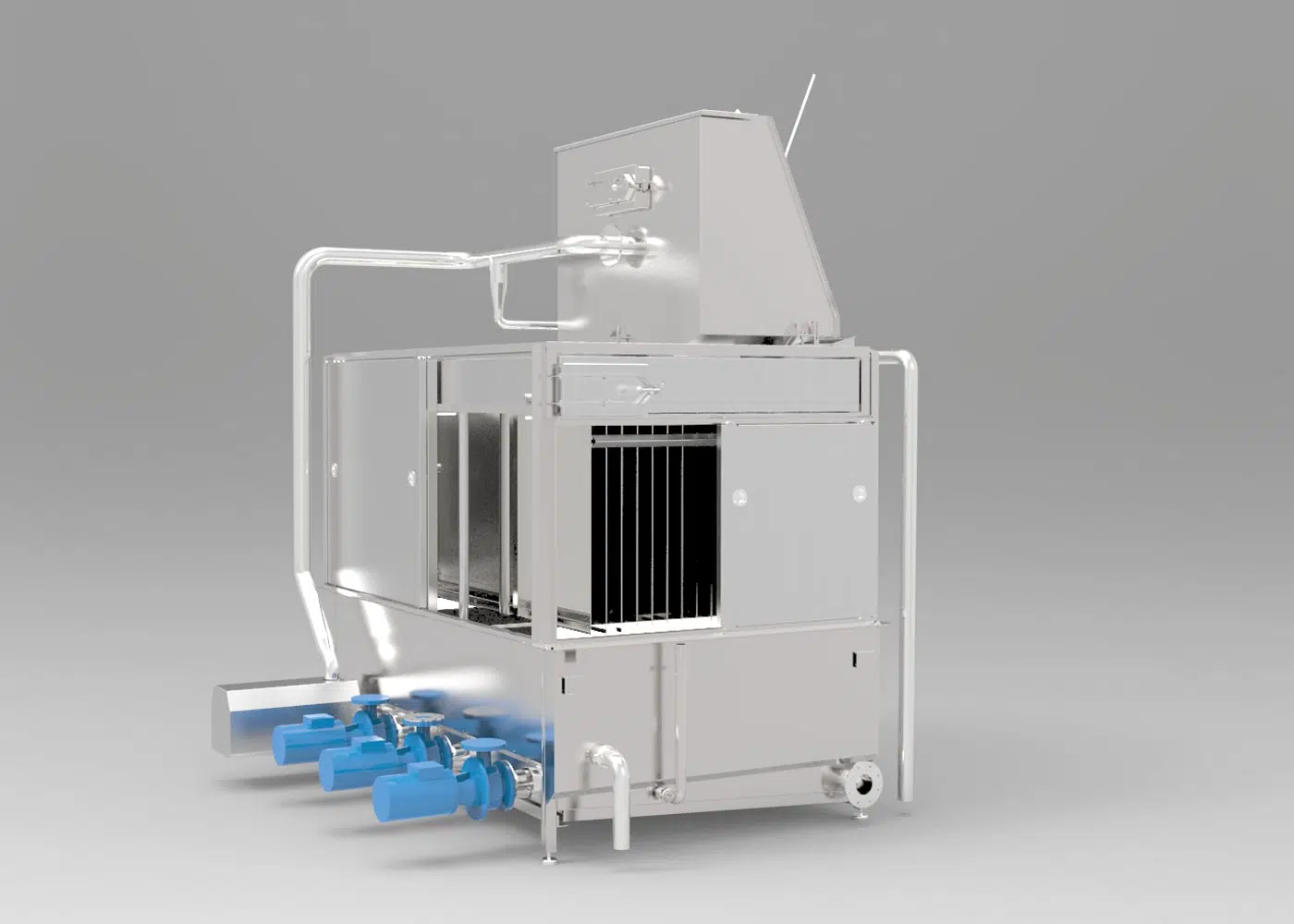

Chiller with 16 cooling plates and Reko screen filter

Product gallery

Closeup of chilling element

Easy access for cleaning and maintenance

Designed to be fully enclosed during operation

High quality built-in filter system
